The

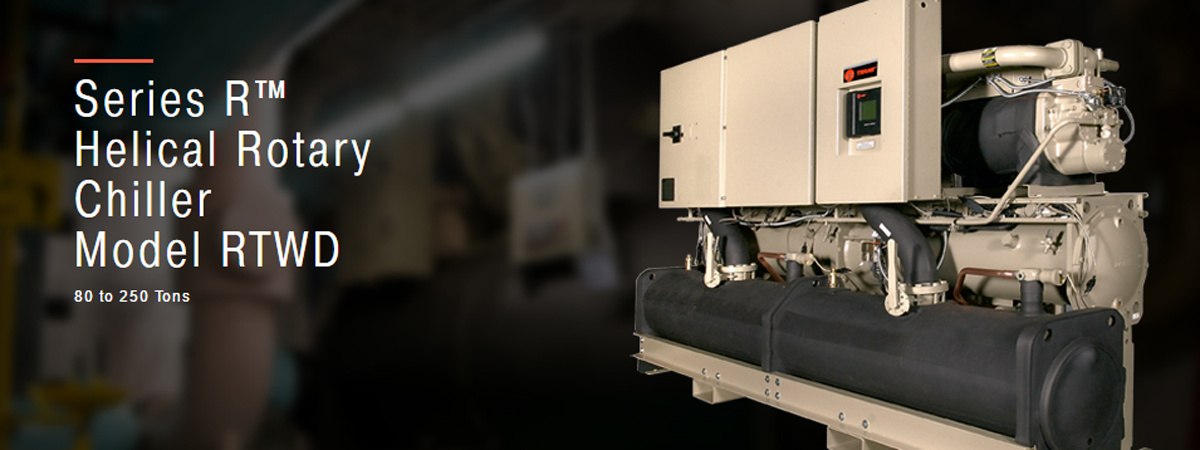

Water-cooled Series R Helical Rotary Chiller - Model RTWD
offers ease of installation, application flexibility, high reliability
and improved energy efficiency due to its advanced design, low
speed/direct drive compressor, and proven Series R performance.
The Series R Model RTWD Helical Rotary chiller offers two efficiency
levels that meet or exceed ASHRAE 90.1 efficiency guidelines.
The industrial-grade design is ideal for both industrial and
commercial markets. The infinite unloading compressor, wide operating
temperature range, advanced CH530 controls, and industry-leading
efficiencies make this chiller the perfect choice for tight
temperature control in almost any application.
Range of Applications
- Low temperature process
- Thermal
storage/ice-making
- Heat recovery
- Water-to-water Heat PumpDry cooler
Features
- Series R Helical Rotary Chiller capacities range from 75-240
tons 60 Hz and 60-240 tons 50 Hz
- Meets ASHRAE
90.1-2010 efficiency guidelines
- Reduced
refrigerant charge and efficiency improvements to help obtain LEED
certification
- Ability to generate up to 140°F
leaving condenser water temperature for heat recovery
applications
- Reduced sensitivity to condenser
water temperatures
- Ability to operate in
variable primary flow applications
- Most units
fit through standard single width door
- Fork
lift channels built into the base frame are available for better
maneuverability
- Factory testing helps ensure
trouble-free start-up
- Adaptive Control™
algorithms provide all unit control and safety functions in a
proactive strategy
- Time of day scheduling
option to provide simplified unit level control
- Up to 65kA SCR ratings
